Professional Conference Meeting Microphone Heart Type Capacitance 2kΩ Input Impedance

VISSONIC ELECTRONICS LIMITED
Contact Now

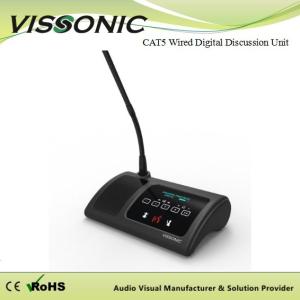

Professional Conference Meeting Microphone Heart Type Capacitance 2kΩ Input Impedance

Brand Name : VISSONIC

Model Number : VIS-DVC-T

Certification : CE/ISO901/ROHS/CCC

Place of Origin : CHINA

MOQ : 1

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 10000PCS

Delivery Time : 15 DAYS

Packaging Details : CARTON

Button : Touchable interface , no physical buttons

Sound Pickup : Heart type capacitance

Connection : CAT5 / CAT6 cable + snap

Display : OLED display 128 × 32

Input impedance : 2kΩ

Weight : 1.1kg (with microphone)

Contact Now

Discussion System With Voting System CAT5 Wired Digital Voting Chairman Unit

Features

  1. Stylish, low profile design with touchable interface
  2. Standard CAT5e and RJ45 connectors are used in CLEACON series to provide more convenient on project and maintenance.
  3. The connection of MIC units are either hiding underneath or from the rear of the unit, makes it convenient for different request of installation,
  4. Five keys voting function
  5. Support interpretation function with 64 channels selector which can display the language and channel number(Insert the earphone and the channel selector is active)
  6. OLED screen, providing excellent brightness, contrast, wide viewing angle but low power consumption
  7. Internal high fidelity loudspeaker
  8. Head-set interface in both sides with volume adjust
  9. Line-in interface which allows microphone or other line-in device like cell phone, laptop to pass audio through to perform teleconference
  10. The unique AUDIO-LINK digital ring network technology achieve full-digital signal transmission and processing, completely avoid the RF interference from cell phone or similar devices.
  11. Strong system robust by the "Hand-in-Hand-Loop-Network" connection method.
  12. Timer on display to set certain time for each delegate to speak, will remind user or close the MIC automatically
  13. All units can be configured as Chairman
  14. or Delegate unit through software settings based on model DVC-T.
Button Touchable interface, no physical buttons
Sound Pickup heart type capacitance
Display OLED display 128 × 32
Sensitivity -46 dBV / Pa
Maximum power consumption 2.0W
Connection CAT5 / CAT6 cable + snap
Equivalent noise 20dBA (SPL)
Main material ABS
The maximum sound pressure 125dB (THD <3%)
Weight 1.1kg (with microphone)
Dimension 185W × 130 D× 50H mm (without microphone)
Operating temperature 0 ℃ to + 55 ℃
Color Black
Directivity 0 ° / 180 °> 20 dB (1 kHz)
Headphone load 16Ω
headphone volume 10mW
Headphone jack 3.5mm stereo
Input impedance 2kΩ
SNR 70dB
Frequency response 20 ~ 20000Hz
